Henan Doing Environmental Protection Technology Co., Ltd
E waste recycling machine manufacturer
We provide free trial service.
You can also visit our factory.
Aluminum plastic separation recycling equipment adopts the advanced dry type physical separation method, which can help you get aluminum and plastic of 99% separation rate from aluminum composite materials.
1. Use crusher to crush aluminum plastic composite materials into particles below 4mm.
2. Grinding mill will grind these small particles into 24 mesh powder
3. Control the size of powder by using an eddy-vibrating screen - Bigger powder will be sent back to grinding mill for further grinding.
4. Taking advantage of different conductivity of metals and non-metals, electrostatic separator will separate aluminum from plastic with 99% separation rate.
5. During working process, dust dust removal system and cyclone dust removal system will collect the dust closely to protect the clean of working environment.
Aluminum plastic separation recycling equipment structure
The general configuration includes a crusher, grinding mill, eddy-vibrating screen, electrostatic separator and dust removal system. But there is a small different in grinding mill, which has blade type and disk type to process aluminum composite panels, aluminum foils and medical blister packs. Besides, due to the properties of these materials are different, in order to avoid the plastic get melting at high temperatures during machine running, aluminum plastic separation recycling equipment needs to be equipped with water cooling system or wind cooling system.
|Capacity (Kg/h)||Overall Dimension||Power (Kw)||Weight (Kg)||Recovery Rate|
1. Dry type physical separation method, without burning, chemical solution, smoke, waste water emissions, truly green separation, it won't cause any secondary pollution;
2. Low cost, high working efficiency and high separation rate of 99%;
3. High degree of automation, saving labor - just one or two person is enough for operating machine;
4.Use water cooling and wind cooling system, high grinding efficiency and recovery rate.

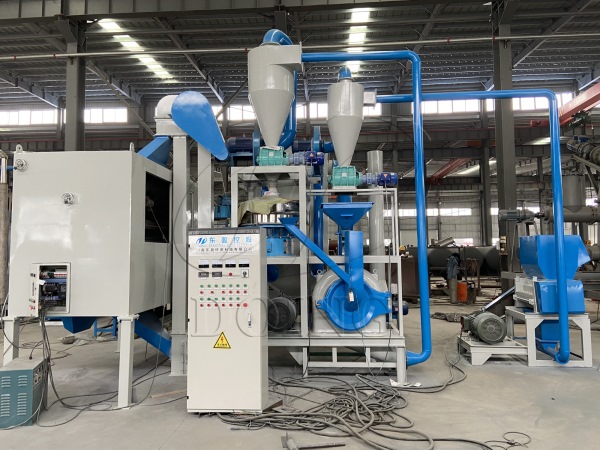

Aluminum plastic separation recycling equipment
If you are interested in aluminum plastic separation recycling equipment, welcome to contact with our Doing company, our professional engineer and sales manager will give you difference configuration about the machine. Feel free to contact!
