Copper cable wire recycling machine is a new type of environmental protection equipment used to separate copper and plastic from waste wires and cables. The working principle of copper cable wire recycling machine adopts the air separation and electrostatic separation, to separate copper from plastic according to the different specific gravity and different electrical properties.
Copper cable wire recycling machine and the separated copper & plasitc

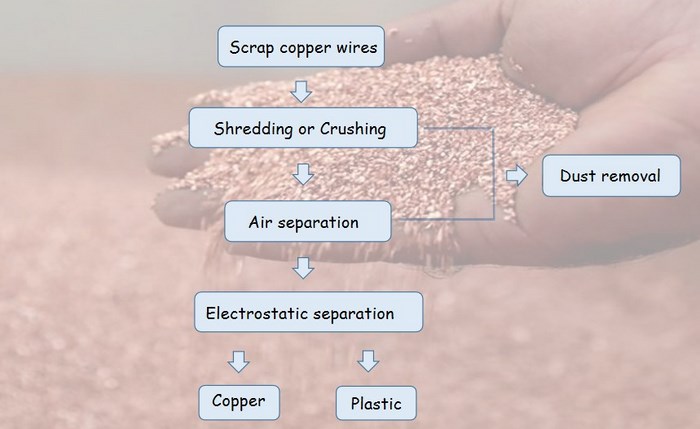

a. The shredder cut the waste wires and cables into small pieces.
b. If the crushed waste wires and cables, such as scrap car wires, contain a small amount of iron, you need to use a magnetic separator to select the iron first.
c. According to the different specific gravity of copper and plastic, the air separator can separate copper and plastic from the broken cable.
Air separator can separate copper and plastic from the broken cable.
d. Copper contains a small amount of brass pieces. The vibrating screen can screen out the brass in the copper particles, and the copper particles are discharged from the discharge port. The plastic is discharged from another outlet.
Vibrating screen separate brass in the copper particles
e. If you want to get high purity copper and plastic, you can use high-voltage electrostatic separator. According to the different electrical properties of copper and plastic, the electrostatic separator sorts plastic and copper in a closed high-voltage electrostatic field, and the purity is more than 99%.
Electrostatic separator separate fine copper from plastic
The copper cable wire recycling machine adopts the dry type physical separation method to realize the dual recovery of copper and plastic, and the entire process will not produce any pollution.
The above is the Introduction of working principle of copper cable wire recycling machine. The disposal of different waste wires and cables and wires is slightly different in configuration. DOING can match the corresponding equipment according to the customer's raw materials. You can also bring the material for free test machine, welcome to visit our factory!
