Medical capsule blister recycling separator

Medical capsule blisters are mainly made of plastic and aluminum foil composite materials. These materials are not easily degraded and their long-term presence in the natural environment will lead to soil pollution, water pollution and ecological damage. Both plastic and aluminum are valuable non-renewable resources. Through recycling and reuse, discarded medical capsule blisters can be converted into new raw materials, reducing the need for new raw materials and thus saving resources.

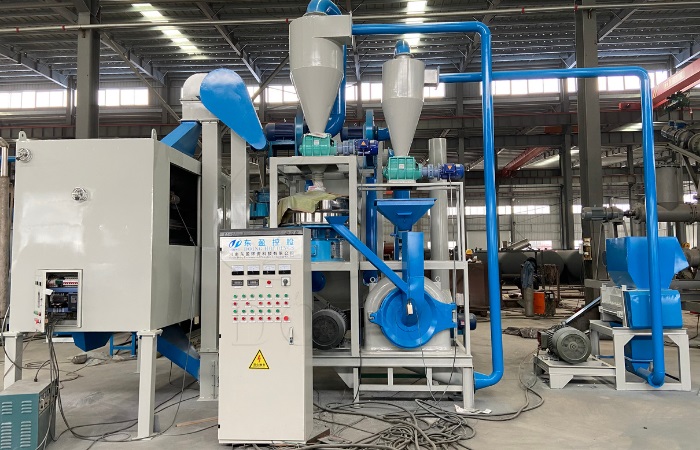

Medical capsule blister recycling separator

Medical capsule blister recycling separator generated by Doing Company can separate aluminum and plastic from discarded medical capsule blisters. Through crushing, grinding, separation, dust removal and other processes, the separation rate of aluminum and plastic powder can reach about 99%. And the recycled aluminum can be directly used for smelting aluminum ingots, or directly used in aluminum powder factory, fireworks plant and aluminum plants, while the separated plastic can be sold on the market as reprocessed material.

Working flow of medical capsule blister recycling separator：

1. Crush discarded medical capsule blisters into small particles.

2. Grind thees particles into powder with grinder.

3. Use an eddy-vibrating screen to control the size of powder. If the size is big, they will go back to grinder to be ground again.

4. Use an electrostatic separator to separate smaller size aluminum and plastic powder.

5. During whole process, pulse dust collector will collect the dust.

This is a 3D animation video produced by our company's engineers based on our medical capsule blister recycling separator, which can help you understood it easier. 视频

Advantages of medical capsule blister recycling separator:

1. The medical capsule blister recycling separator adopts the structure of multi-machine combination, manual feeding, multi-machine completion, equipped with automatic conveying, circular cooling system, etc., to achieve the separation and recycling of aluminum and plastic.

2. Medical capsule blister recycling separator adopts high-voltage electrostatic separation technology, and its metal recovery rate is higher. Recycling aluminum and plastic without destroying quality, which can bring greater economic benefits.

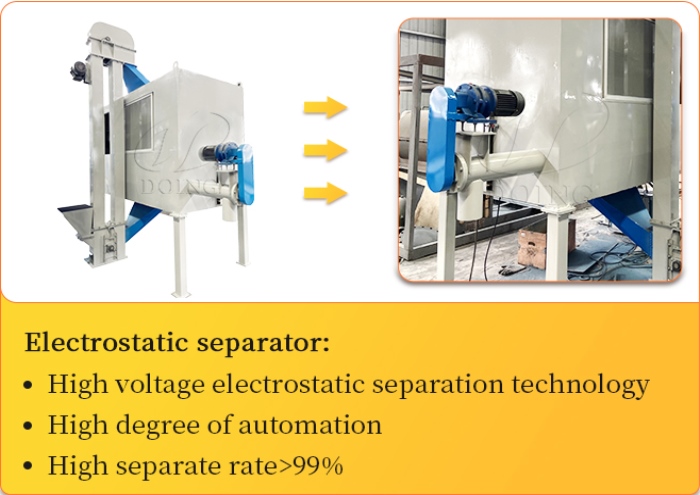

Electrostatic separator

3. Medical capsule blister recycling separator has a high degree of automation, easy operation, high stability and labor saving. No waste water discharge, real green environmental sorting, no secondary pollution.

4.Medical capsule blister recycling separator is equipped with a pulse dust system, which effectively solves the problem of dust pollution.

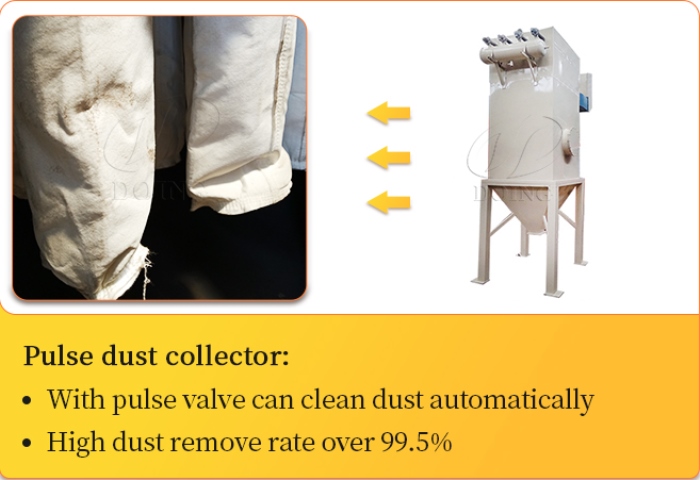

Pulse dust system

5. The aluminum-plastic sorting and reusing treatment equipment adopts circulation water cooling system and grinder, which make the material separation more clean and adapt to a wider variety of materials.

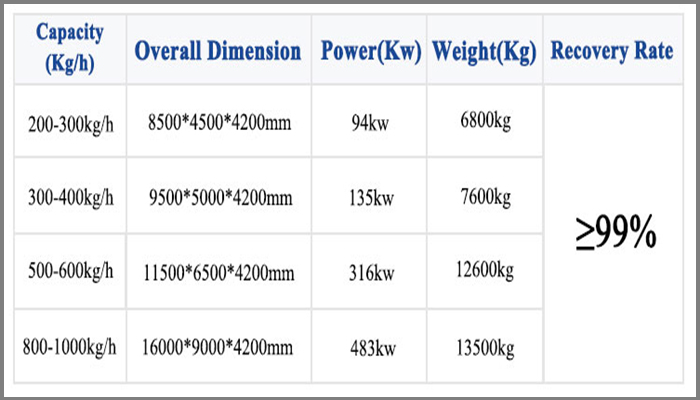

Parameters of medical capsule blister recycling separator:

Technical parameter

In addition to medical capsule blisters, our medical capsule blister recycling separator can also recycle other aluminum plastic composite materials such as aluminum-plastic panels, aluminum-plastic films, aluminum-plastic packaging materials, etc. If you are worried about the separation effect, we welcome customers to bring materials for testing.

In case you are interested in the machine and wish to acquire more information, please reach out to us. Henan Doing have experienced technical staff who can provide solutions to meet different customer needs.
