Can solar panels be 100% recycled?

"Can solar panels be 100% recycled?" has become a question of keen interest to many waste recycling companies, investors in environmental projects, and professionals in the photovoltaic industry. While there are certain technical challenges, the use of specialized solar panel recycling machine allows for the recovery rate of over 95% for solar panel components.

I. Solar Panel Composition and Recycling Feasibility

To understand the recovery rate for recycling retired photovoltaic modules, it is first necessary to break down their physical composition. The weight distribution and recycling potential of a standard crystalline silicon solar panel are as follows:

In the actual process of recycling solar panels, achieving "100% recycling" in the absolute sense presents significant engineering challenges, as the EVA film bonds the various components tightly together. Even so, through modern processing technologies, we have been able to raise the overall material recovery rate to over 95%, a highly impressive figure in the field of resource recycling.

II. How is Efficient Separation and Recovery Achieved?

Physical-mechanical separation is widely adopted in the industry for processing waste solar panels. This method requires no chemical additives, effectively preventing secondary pollution. The DOING physical recycling process for solar panels comprises the following steps:

1. Automated Frame Removal and Junction Box Detachment

Automated feeding&identification systems and frame-removal devices are used to rapidly separate the aluminum frames and rear junction boxes; these materials can then enter the metal recycling market directly. Crucially, our auto-controlled frame removers achieve near-100% aluminum recovery, removing the material loss normally caused by manual cutting and lifting the first-stage solar panels recycling rate.

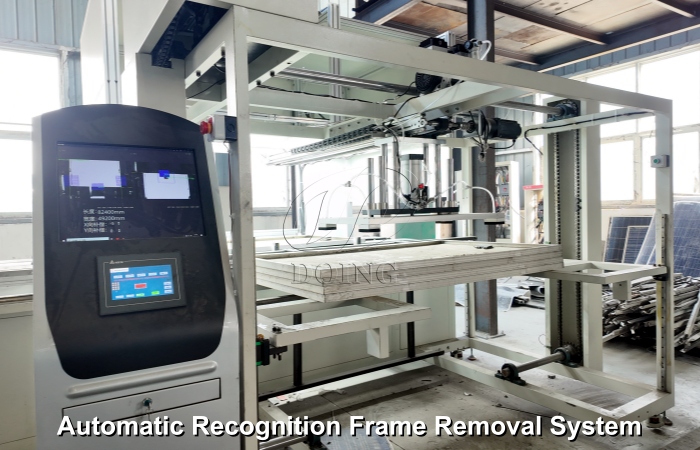

Automatic identification and aluminum frame removal machine

2. Glass Stripping and Laminate Separation

Mechanical stripping and thermal debonding technologies are employed to separate the surface photovoltaic glass from the laminate, ensuring the purity of the glass particles. By precisely regulating the debonding temperature, our glass separation unit keeps glass contamination below 2%, raising glass recovery while protecting the high-value silicon layer underneath—a direct gain in overall recycling efficiency.

3. Multi-stage Crushing and Fine Grinding

The mixture of solar cells and backsheets separated from the glass enters the crushing system, where it undergoes coarse crushing, fine crushing, and micropowder grinding to fully liberate the copper, silicon powder, and plastic granules.

4. Air-Density and Electrostatic Separation

Leveraging differences in density and electrical conductivity among the components, air-density separators and high-voltage electrostatic separators are used to sequentially recover copper powder, silicon powder, and backsheet plastics. Our multiple-stage separation deliver copper and silicon purity above 98% at several tons per hour, converting what was once low-value mixture into saleable, high-purity materials.

In current industrial practice, minor material loss occurs during physical processing and dust collection. Although achieving "100% recycling" of solar panels presents certain technical challenges, the use of specialized solar panels recycling machine allows the overall recovery rate of photovoltaic modules to reach over 95%.

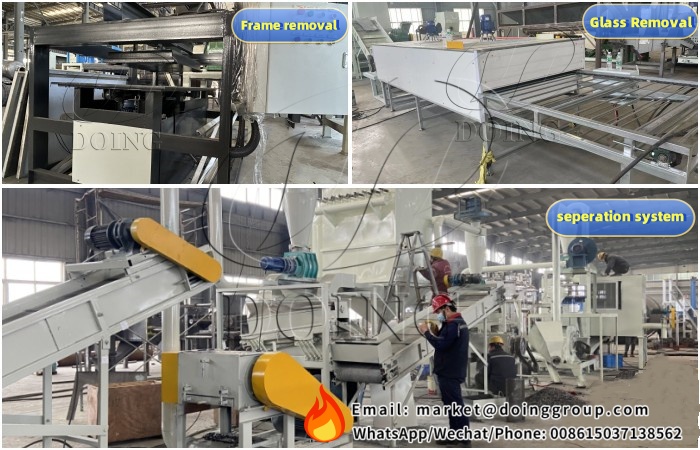

Solar panel recycling production line

Taken together, our solar panel recycling line—frame remover, PV module glass thermal dismantling system, multi-stage crusher, and multi-stage separators—operates to capture every recoverable gram. This is how DOING consistently delivers a solar panels recycling rate of over 95% through a fully optimized solar panel physical recycling process.

If you are exploring the solar panel recycling industry or wish to learn how to set up a high-yield photovoltaic module processing line, please feel free to contact us. DOING Company possesses extensive experience in the manufacturing and export of solar panel recycling equipment and can provide you with a tailored, systematic solution, covering everything from plant layout and equipment manufacturing to installation and commissioning.
