What is the copper wire recycling machine?

1.What is copper wire recycling machine?

As the name suggests, copper wire recycling machine is a machine which is used to process waste copper wires. By using this machine, we can get high purity of copper. And because the copper separated is like rice grain, it is also called copper wire granulator machine.

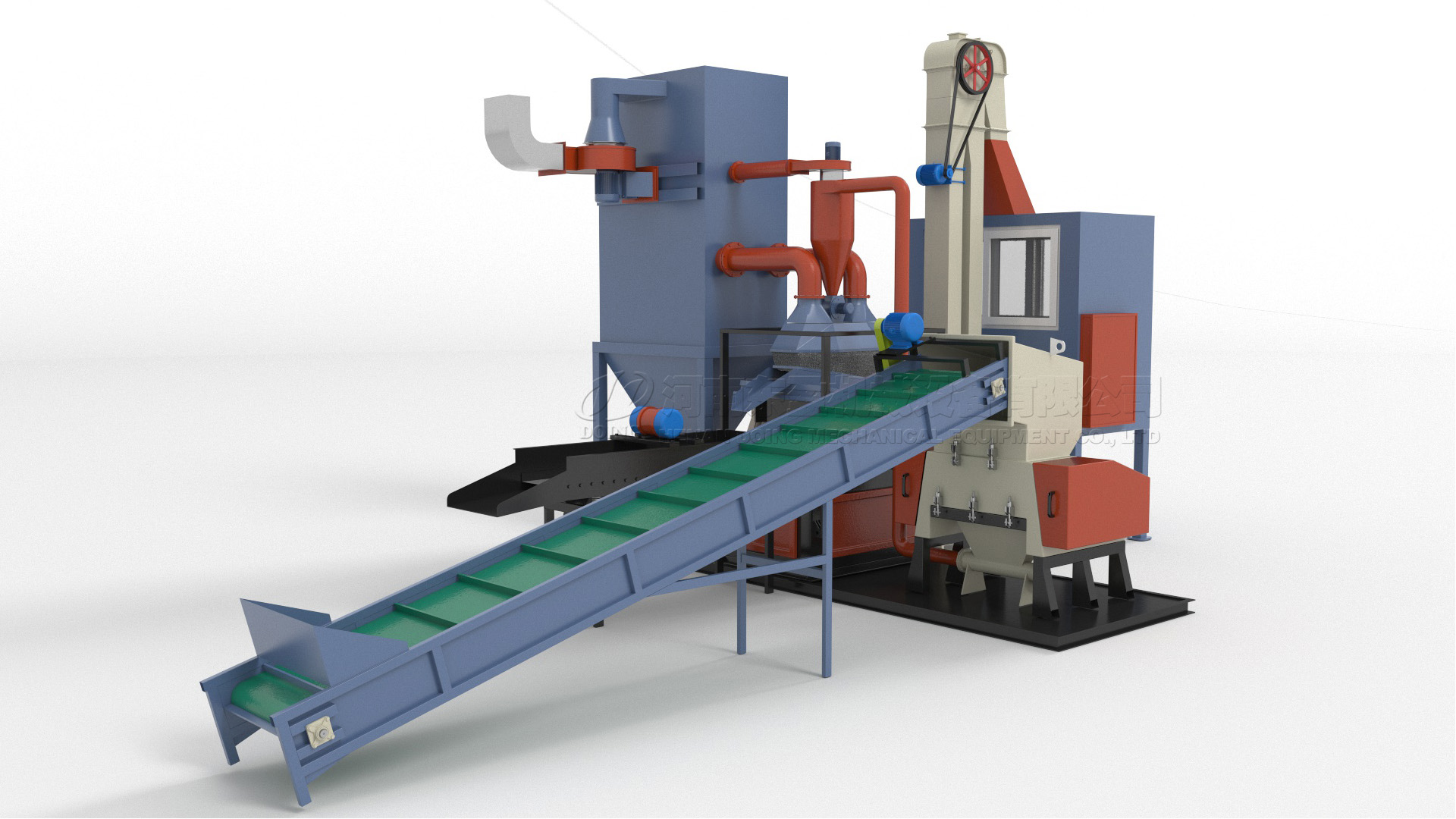

copper wire recycling machineCopper wire recycling machine

2.Which kind of materials can be application to copper wire recycling machine?

Copper wire recycling machine has a wide range of application, which can process many kinds of copper wire, like telephone wires, industrial cables, communication wires, copper plastic composite wires, etc., even aluminum wires. And these wires are very easy to be collected in recycling stations, automobile dismantling plants, home appliances recycling and dismantling centers, environmental recycling centers, scraps from production line manufacturers, scraps from cable factories, etc.

copper wire recycling machineCopper wire

3. What is the working process of copper wire recycling machine?

Copper wire recycling machine adopts dry type separation method to recycle copper. And the working process as follows:

a ). Shredding

First, using a shredder the wires into small sections about 5-7 cm.

b ). Crushing

Then using a crusher to crush these sections into small particles of copper and plastic.

copper wire recycling machineWorkflow of copper wire recycling machine

c ). Air separating

Last, using a air separator to separate copper and plastic from the particles according to their different gravities.

Tips: Above is the general process of copper wire recycling machine. If you want to get higher purity of copper, you can add an electrostatic separator. Electrostatic separator can separate copper and plastic according to their different conductivities in the magnetic field.

4.What can we get from copper wire recycling machine?

By using copper wire recycling machine, what will we get is copper and plastic. As for copper, it can be sold directly in the local metal recycling market, or it can be sold to a copper electrolysis plant. And the plastic can be used as secondary thread leather, or granulated to make other products.

copper wire recycling machineEnd products obtained from copper wire recycling machine

5. What is the parameter of copper wire recycling machine?

Capacity(Kg/h)

  Overall Dimension

Power(Kw)

Weight(Kg)

Recovery Rate

100-150kg/h

(DY-400)

4000*2000*2300mm

25kw

1500kg

≥99.9%

200-300kg/h

(DY-600)

5000*4000*2500mm

38kw

3500kg

300-400kg/h

(DY-800)

6000*5000*4200mm

65kw

4500kg

500-600kg/h

14000*6000*4200mm

100kw

7000kg

1000kg/h

18000*14000*4200mm

210kw

10000kg

2000kg/h

28000*20000*5000mm

300kw

15000kg

6. What advantages does copper wire recycling machine have?

a ). High working efficiency - many kinds of processing capacity to be chosen;

b ). High separation rate - up to 99% separation rate;

c ). Environmental friendly - dry type separation method and pulse dust removal system

d ). Small footprint - integrated design, occupies a small land;

e ). Easy to operate - PLC control system, only needs 1 or 2 workers to operate.



Hoping this article can help you understand what is copper wire recycling machine. If you are interested in it, and want to buy one set copper wire recycling machine, welcome to contact us-Henan Doing Environmental Protection Technology Co., Ltd.
